Netti 4U Base

The Netti 4U Base is ideal for moulded seats with all the benefits of a Netti wheelchair. The wheelchair is characterized by its lightweight and narrow design making the chair ideal for narrow doorways and tight indoor spaces. The chair can easily be transported in mid-range cars.

Modern design
Excellent ergonomic solutions
Suitable for moulded seat, Ride Designs or Netti Seating System

Why choose this chair?
Configuration possibilities
Specifications
Downloads

Why choose this chair?

Prepared for moulded seats

Round back tubes with standard dimensions ensure that all kinds of customer-specific seating systems can be supported.

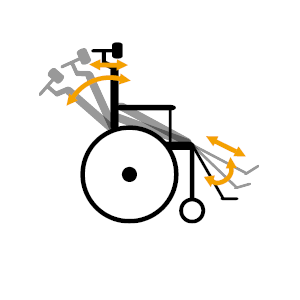

Dynamic Seating options

Involuntary movements often cause several challenges for wheelchair users and attendants for example sliding and thus often need of repositioning.

This can be accommodated by including dynamic seating solutions. For the Netti 4U Base the following dynamic options are available:

  • Dynamic head support
  • Dynamic back support
  • Dynamic leg support

If the movement patterns include pelvic movements, we recommend a complete Netti Dynamic System including a dynamic seat unit. For this purpose, we offer the Netti Dynamic Base.

Clinical tests show that dynamic options increase the user’s quality of life giving him the opportunity to spend longer time in the chair in a good seating position thus enabling him to take part in every day life.

By allowing the chair to adapt to the user’s movement, the wear of the chair is also reduced.

Many leg support options

A good positioning of the feet is the first step in creating an upright and stable seating position. And even head control is influenced by the leg positioning. Therefor many leg support options are important if you want to create the best possible seating situation allowing the user to socialize and improve respiration.

Netti 4U Base with its many leg support options, is a good choice if you have users with challenges like:

  • Pointed foot
  • Contractions
  • Restless legs
  • Extra need of support
  • Involuntary movements
  • Amputation
  • Asymmetries
54 mm seat width flexibility

Seat width reduction (2x15 mm) and seat with expansion (2x 12 mm) give room for growth and make the Netti 4U CED economical in use. These options can also be used to create optimum stability and position.

Combined with the flexibility in seat depth, this makes Netti 4U Base suitable for users of many sizes with functional seat widths of 320 mm to 500 mm.

For larger seat widths, we offer Netti 4U CED XL and Netti III HD and Netti III XHD.

Adaptable for asymmetries

Netti 4U Base offers many options to compensate for different asymmetries.

Hip asymmetries can be accommodated through different adjustment of the extension pieces offering a stable fundament.

Curved back shape can be supported through the Velcro back with 6 individually adjustable straps as well as the possibility to position the back cushion according to the user’s back shape.

Total width only +180 mm

Netti 4Us are the most narrow and lightweight wheelchairs on the market.

Total seat width of the wheelchair

  • Seat width +170 mm with 16” standard drum brake wheels
  • Seat width +170 mm with 12,5” wheels
  • Seat width +180 mm with 24'' wheels
  • Seat width +195 mm with 24'' drum brake wheels

The length of the wheelchair also makes the wheelchair ideal for narrow doorways and tight indoor spaces.

Who will benefit from this wheelchair?

User group Netti Campus

The Netti 4U Base is ideal for user with need of moulded seats or Ride Design seating systems. The user are typically sitting in the chair for 8+ hours per day. It will fit both young and geriatric users of all sizes. The chair works well for users being transferred by hoist or to the side.

For users with specific challenges like e.g.

  • Hip rotation or pelvic rotation
  • Asymmetries like scoliosis
  • Kyphosis
  • Users with neurological disabilities like spasticity and restlessness



For users needing specific accessories like e.g.

  • Moulded seats
  • Ride Design back system
  • Medical device
  • Special leg support solutions
  • Dynamic components

Key Features

Prepared for moulded seats
Multiple seat unit options
Flexible arm supports
Extenders for leg length compensation

Configuration possibilities

An overview of all the possibilities you have with this wheelchair.

= Standard configuration
= Option
= Not possible

Leg supports
Angle adjustable leg support with calf support and footplates:
Netti Grandis leg support:
Universal leg support:
Netti Dynamic leg support:
Footboard:
Adjustable extension pieces:
Footbox:
Amputation leg support:
Abduction leg support +50 mm:
Seat
Sliding seat plate:
Firm seat plate:
Dynamic seat plate:
Back
Back cushion options possible:
Back height extension:
H-belt adapter:
Side supports:
Dynamic back option:
Libertas option:
Pelvic belt and harness
Hip belts:
Pelvis stabilizer and other belts from BodyPoint:
H-belt adapter:
Upper body support from Netti and Bodypoint:
Arm support
Revolvable arm support:
Removable arm support:
Height and depth adjustable armrest:
Various arm pad:
Hemi arm support:
Head support
Head support stabilizer:
Netti Dynamic head support:
Aluminium head support adapter:
Dynamic component
Netti Dynamic head support:
Netti Dynamic seat plate:
Netti Dynamic back:
Libertas flexible back:
Netti Dynamic leg support:
Wheels and brakes
Frame brakes:
Brake lever extension:
Drum brakes:
Anti tippers without pedal:
Anti tippers with pedal:
Frame extension:
Ad on drive and Powered assist
E-Drive option:
E-Move option:
Cover
Wipeable Easy Care cover:
Breathable 3D cover:
Various accessories
Device rack for medical aids:
Intravenous rack:

= Standard configuration
= Option
= Not possible

Specifications

Further configuration options can be seen in on the tab "Configuration Possibilities"

General specifications
Price:
1,950.00
Seat width in mm:
350, 400, 450, 500 mm
Optional seat width flexibility in mm:
2x -12/+ 2x +15 mm
Seat depth in mm (adjustable in 25 mm steps):
425 - 500 mm
Back height possibilities range in mm:
500 mm
Seat height range measured to seatplate in mm:
440 - 500 mm
Max. load:
135 kg
Max. load for car transport:
135 kg
Tilt angle:
-8° - +22°
Recline angle:
92° - 137°
Width added to seat width with standard wheels:
180 mm
Leg support length with standard leg support in mm:
320 - 680 mm
Arm support height (from seatplate to armpad) in mm:
265 - 355 mm
ADL skin protection
Skin protection
ADL Mobility
Increased mobility
ADL eating and drinking
Improved drinking and eating abilities
