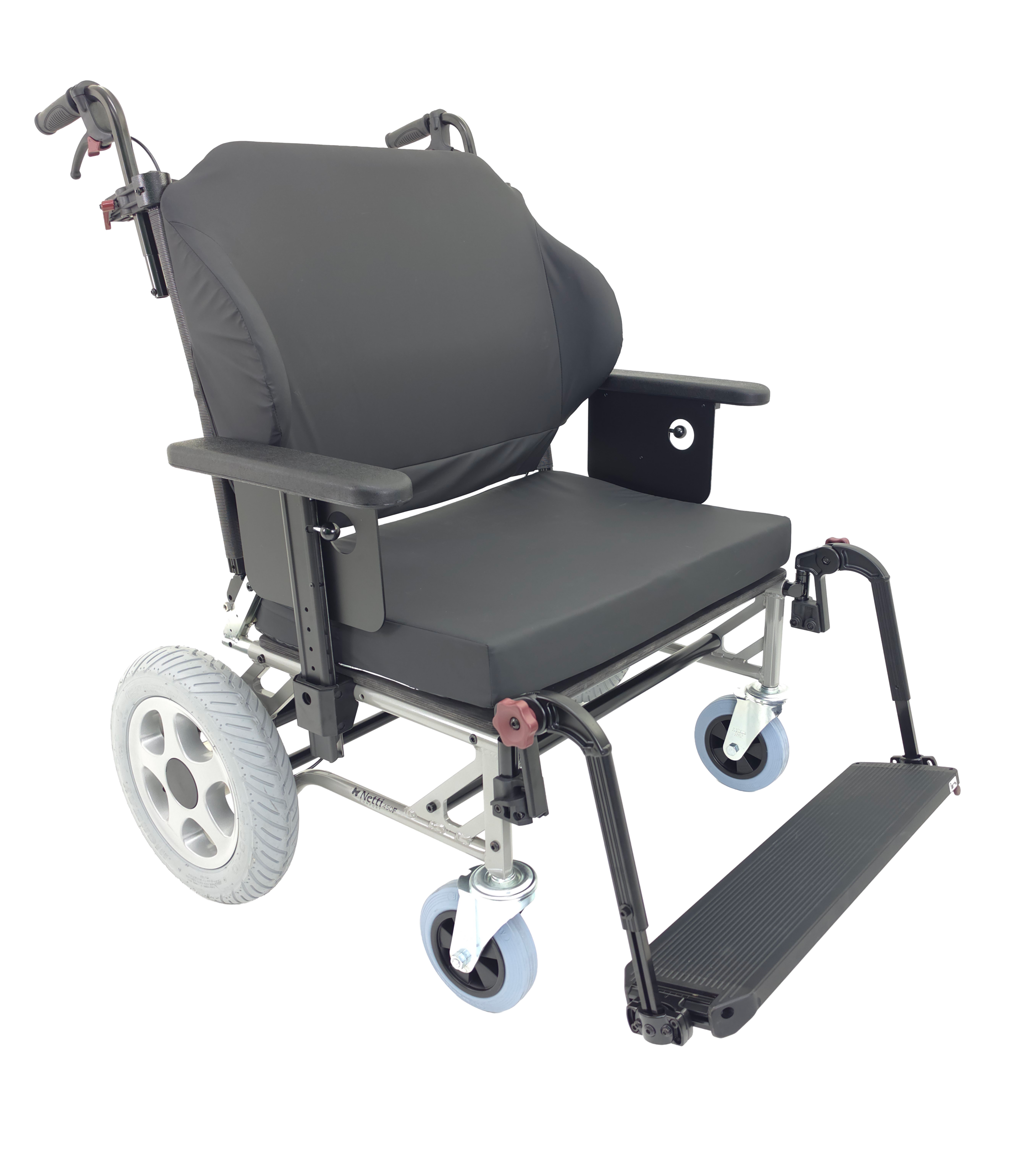

Netti 450 F

During the last years, we have seen a steadily increasing demand for solutions for bariatric users. Our experienced technicians and technical consultants can customize wheelchairs to meet most needs. For example, we can supply reinforced wheelchairs with seat widths up to and above 100 cm and for a user weight up to 450 kg. These include the two 450 models. Netti 450 F Back support manually adjustable in three different angles

For bariatric users it is of high importance that the back and seat can be adjusted to different body shape, as many large users will experience problems with standard seating solutions. Netti Seating System is designed both to cope with high user weight and optimum pressure distribution.

Seat width up to 1000 mm
User weight up to 450 kg
Back support manually adjustable in three different angles
Configuration possibilities
Specifications
Downloads

Configuration possibilities

An overview of all the possibilities you have with this wheelchair.

= Standard configuration
= Option
= Not possible

Leg supports
Angle adjustable leg support with calf support and footplates:
Netti Grandis leg support:
Universal leg support:
Netti Dynamic leg support:
Footboard:
Adjustable extension pieces:
Footbox:
Amputation leg support:
Abduction leg support +50 mm:
Seat
Sliding seat plate:
Firm seat plate:
Dynamic seat plate:
Back
Back cushion options possible:
Back height extension:
H-belt adapter:
Side supports:
Dynamic back option:
Libertas option:
Pelvic belt and harness
Hip belts:
Pelvis stabilizer and other belts from BodyPoint:
H-belt adapter:
Upper body support from Netti and Bodypoint:
Arm support
Revolvable arm support:
Removable arm support:
Height and depth adjustable armrest:
Various arm pad:
Hemi arm support:
Head support
Head support stabilizer:
Netti Dynamic head support:
Aluminium head support adapter:
Dynamic component
Netti Dynamic head support:
Netti Dynamic seat plate:
Netti Dynamic back:
Libertas flexible back:
Netti Dynamic leg support:
Wheels and brakes
Frame brakes:
Brake lever extension:
Drum brakes:
Anti tippers without pedal:
Anti tippers with pedal:
Frame extension:
Ad on drive and Powered assist
E-Drive option:
E-Move option:
Cover
Wipeable Easy Care cover:
Breathable 3D cover:
Various accessories
Device rack for medical aids:
Intravenous rack:

= Standard configuration
= Option
= Not possible

Specifications

Further configuration options can be seen in on the tab "Configuration Possibilities"

General specifications
Seat width in mm:
500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000 mm
Optional seat width flexibility in mm:
-
Seat depth in mm (adjustable in 25 mm steps):
440 - 540 mm
Back height possibilities range in mm:
550 mm
Seat height range measured to seatplate in mm:
430 mm
Max. load:
450 kg
Max. load for car transport:
-
Tilt angle:
-
Recline angle:
80°, 94°, 104°
Width added to seat width with standard wheels:
200 mm
Leg support length with standard leg support in mm:
360 - 500 mm
Arm support height (from seatplate to armpad) in mm:
185 - 325 mm
