Grandis fixed angle leg supports
A sturdy but light weight fixed foot support. Easy to adjust to an exact position via the readable degree-scale on the outside. Able to move into position of 96° (under the chair).
For lower leg length 380-550 mm.
Leg supports are an important base for optimum seating positioning.
Items to Order
Extension pieces with abduction together with Netti Grandis leg supports cannot be used on a wheelchair that needs to function as a seat during transport. Please contact customer service for a special adaptation quote.
| Pos. | Description | Seat Width | Unit | Item no. | |
|---|---|---|---|---|---|
1 |
Fixed angle adjustable leg support complete right | 350 mm | Piece | 87543 |
|
2 |
Fixed angle adjustable leg support complete left | 350 mm | Piece | 87551 |
|
1 |
Fixed angle adjustable leg support complete right | 380 mm | Piece | 87544 |
|
2 |
Fixed angle adjustable leg support complete left | 380 mm | Piece | 87552 |
|
1 |
Fixed angle adjustable leg support complete right | 400 mm | Piece | 87545 |
|
2 |
Fixed angle adjustable leg support complete left | 400 mm | Piece | 87553 |
|
1 |
Fixed angle adjustable leg support complete right | 430 mm | Piece | 87546 |
|
2 |
Fixed angle adjustable leg support complete left | 430 mm | Piece | 87554 |
|
1 |
Fixed angle adjustable leg support complete right | 450 mm | Piece | 87547 |
|
2 |
Fixed angle adjustable leg support complete left | 450 mm | Piece | 87555 |
|
1 |
Fixed angle adjustable leg support complete right | 500 mm | Piece | 87548 |
|
2 |
Fixed angle adjustable leg support complete left | 500 mm | Piece | 87556 |
|
1 |
Fixed angle adjustable leg support complete right | 550 mm | Piece | 87549 |
|
2 |
Fixed angle adjustable leg support complete left | 550 mm | Piece | 87557 |
|
1 |
Fixed angle adjustable leg support complete right | 600 mm | Piece | 87550 |
|
2 |
Fixed angle adjustable leg support complete left | 600 mm | Piece | 87558 |
|
| Pos. | Description | Unit | Item no. | |
|---|---|---|---|---|
1 |
Fixed angle adjustable leg support upper part complete right | Piece | 89862 |
|
2 |
Fixed angle adjustable leg support upper part complete left | Piece | 89863 |
|
| Pos. | Description | Seat Width | Unit | Item no. | |
|---|---|---|---|---|---|
1 |
Footplate with strap right/left | 350 mm | Piece | 87533 |
|
1 |
Footplate with strap right/left | 380 mm | Piece | 87534 |
|
1 |
Footplate with strap right/left | 400 mm | Piece | 87535 |
|
1 |
Footplate with strap right/left | 430 mm | Piece | 87536 |
|
1 |
Footplate with strap right/left | 450 mm | Piece | 87537 |
|
1 |
Footplate with strap right/left | 500 mm | Piece | 87538 |
|
1 |
Footplate with strap right/left | 550 mm | Piece | 87539 |
|
1 |
Footplate with strap right/left | 600 mm | Piece | 87540 |
|
2 |
Heel strap kit | 350 mm | Piece | 87525 |
|
2 |
Heel strap kit | 380 mm | Piece | 87526 |
|
2 |
Heel strap kit | 400 mm | Piece | 87527 |
|
2 |
Heel strap kit | 430 mm | Piece | 87528 |
|
2 |
Heel strap kit | 450 mm | Piece | 87529 |
|
2 |
Heel strap kit | 500 mm | Piece | 87530 |
|
2 |
Heel strap kit | 550 mm | Piece | 87531 |
|
2 |
Heel strap kit | 600 mm | Piece | 87532 |
|

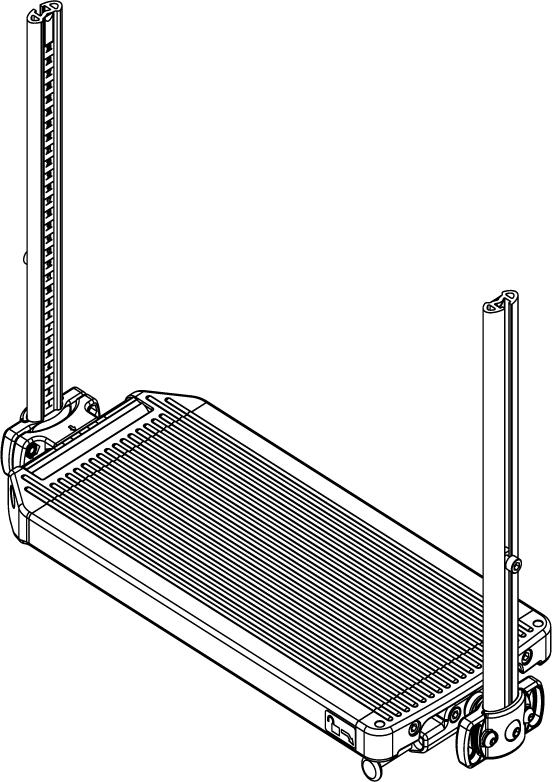

| Pos. | Description | Seat Width | Unit | Item no. | |
|---|---|---|---|---|---|
| Foot board complete | 350 mm | Piece | 89272 |
|
|
| Foot board complete | 375-380 mm | Piece | 89273 |
|
|
| Foot board complete | 400 mm | Piece | 89274 |
|
|
| Foot board complete | 425-430 mm | Piece | 89275 |
|
|
| Foot board complete | 450 mm | Piece | 89276 |
|
|
| Foot board complete | 500 mm | Piece | 89277 |
|
|
| Foot board complete | 550 mm | Piece | 89278 |
|
|
| Foot board complete | 600 mm | Piece | 89279 |
|
|
| Foot board complete | 650 mm | Piece | 89280 |
|
|
| Foot board complete | 700 mm | Piece | 89281 |
|
|
| Foot board complete | 750 mm | Piece | 89282 |
|
| Pos. | Description | Fabric | Seat Width | Unit | Item no. | |
|---|---|---|---|---|---|---|
1 |
Foot box | Skai | 350 mm | Piece | 90411 |
|
1 |
Foot box | Skai | 380 mm | Piece | 90412 |
|
1 |
Foot box | Skai | 400 mm | Piece | 90413 |
|
1 |
Foot box | Skai | 430 mm | Piece | 90414 |
|
1 |
Foot box | Skai | 450 mm | Piece | 90415 |
|
1 |
Foot box | Skai | 500 mm | Piece | 90416 |
|
1 |
Foot box | Skai | 550 mm | Piece | 90417 |
|
1 |
Foot box | Skai | 600 mm | Piece | 90418 |
|
| Pos. | Description | Unit | Item no. | |
|---|---|---|---|---|
1 |
Extension part right | Piece | 85974 |
|
2 |
Extension part left | Piece | 85975 |
|
3 |
Extension part abduction right 25 mm | Piece | 89839 |
|
4 |
Extension part abduction left 25 mm | Piece | 89840 |
|
5 |
Extension piece Netti AdaptPro right | Piece | 90969 |
|
6 |
Extension piece Netti AdaptPro left | Piece | 90970 |
|
7 |
Netti Grandis extension piece Netti V right | Piece | 94211 |
|
8 |
Netti Grandis extension piece Netti V left | Piece | 94212 |
|
Easy to use
The red control point and the clearly legible adjustment scales make the new Grandis intuitive to use. The conical extension piece ensures an easy mounting of the foot supports.
Time-saving fittings
The simple handling and the scales speed up the user-specific adjustment.
We adapt our products to human beings and not the other way round.
170 mm flexibility for lower leg lengths of 380-550 mm.
The angle of the foot plates can be adjusted up to 35° on both sides and the depth setting of the foot plates can be adjusted up to 6 cm. This means that asymmetric foot positions can be safely and securely provided for.
The flat design of the foot plate ensures the biggest
possible surface. Self-locking foot plate lock.
The foot plates can still be locked despite different depth settings (e.g. with different leg lengths or pelvic distortions).
Does it fit my Netti?
If you do not know, which Netti you have, please check the serial number.
You will find the serial no. on a label at the lower cross bar. It writes xxx-xxxxxx.
The first 3 digits of the serial number will help you determine which Netti wheelchair you have.
Please check our FAQ for a list of all serialnumbers and Netti model.
