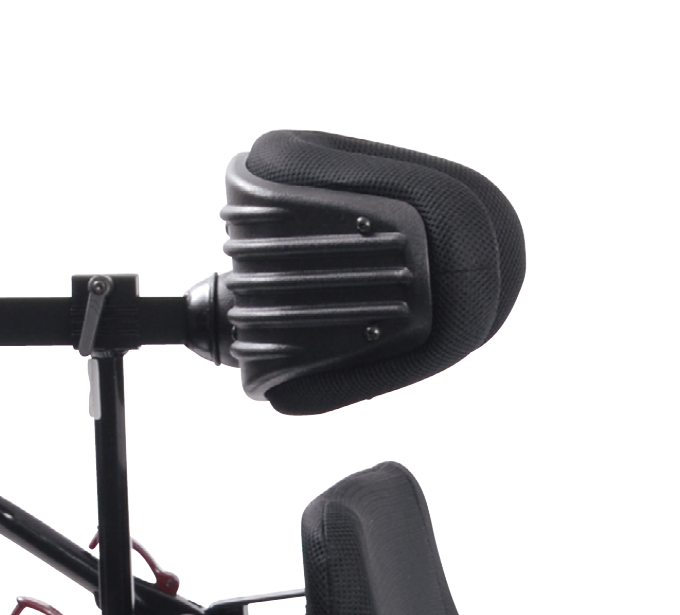

Head support A

For people with limited head control and stability.

The shape of head support A offers a secured and soft head lying position. The 2 lateral side supports provide additional lateral support and ensure to keep the head in a required position by help of the 3D adjustment. It can be used if a user’s head is tending to fall sidewards or simply to offer a stable head position

Items to order
Why choose this?
Does it fit my Netti?
Videos
Downloads

Items to Order

Head support A complete
Pos. Description Fabric Unit Item no. Price
Head support A 3D Piece 40880 208.00
Head support A Easy Care Piece 28382 208.00
Head support pad A
Pos. Description Fabric Depth Unit Item no. Price
Head support A with horizontal bar 3D 150 mm Piece 42370 188.00
Head support A with horizontal bar Easy Care 150 mm Piece 42369 188.00
Head support A with horizontal bar 3D 250 mm Piece 42373 216.00
Head support A with horizontal bar Easy Care 250 mm Piece 42372 216.00
Head support A with horizontal bar 3D 380 mm Piece 42376 218.00
Head support A with horizontal bar Easy Care 380 mm Piece 42375 218.00
Vertical bar for head support
Pos. Description Height Unit Item no. Price
1
Head support vertical bar with tube 200 mm Piece 41401 48.00
1
Head support vertical bar with tube 350 mm Piece 41402 48.00
1
Head support vertical bar with tube 500 mm Piece 41403 93.00
2
Plast plug round - Piece 20509 2.00
3
Latch lever M6x30 - Piece 20282 9.00
Vertical bar for Netti AdaptPro Family only
Pos. Description Height Unit Item no. Price
Head support vertical bar 300 mm Piece 92901 48.00
Cover for head support A
Pos. Description Fabric Unit Item no. Price
Head support cover A 3D Piece 40883 79.00
Head support cover A Easy Care Piece 27554 79.00
Spare parts for head support
Pos. Description Unit Item no. Price
1
Latch lever M6x30 Piece 20282 9.00
2
Washer M6 Piece 20063 2.00
3
Starwheel M8 Piece 91056 9.00
4
Washer D20xd8.4x1.2 mm Piece 29305 3.00
5
Plug 20x30x11.5 mm Piece 20852 3.00
Latch lever M6x16 mm Piece 20097 9.00
Horizontal bar for head support A (only if produced after 03/2017)
Pos. Description Depth Unit Item no. Price
Head support horizontal bar 250 mm Piece 20318 56.00
Head support horizontal bar 380 mm Piece 20372 73.00

Why choose this?

Height adjustable

Each head support can be fitted to each Netti wheelchair by using the head support adapter. To adjust the head support in height you need to loosen the red latch lever by turning the lever anticlockwise until you can move the vertical bar up-or downwards. Adjust the vertical bar according to your need and turn the red lever clockwise to fasten the bar again. A solid version of the head support adapter made of aluminium is available. With this you can fix the height with a bolt to avoid unwanted changes in position.

Depth adjustment

To adjust the head support in depth, loosen the red latch lever of the horizontal tube. Loosen the red latch lever by turning the lever anticlockwise until you can move the horizontal tube front-or backwards. Adjust the horizontal tube according to your need and turn the red lever clockwise to fasten the head support again.

3D-free in space adjustment

As an additional adjustment you can move the head support free in space. Loosen the red star wheel by turning the lever anticlockwise until you can move the head support upholstery free in space. Adjust the head support according to your need and turn the star wheel clockwise to fasten the tube again.

Adjustment to the side

The head support adapter can be move to the right or left adjusting the positioning of the head support to the user.

Different choices of covers
3D

Breathable, elastic and durable. The 3D mesh structure enhances the microclimate, ventilates and reduces heat build-up. This strengthens the skin and the resistance of the underlying tissue against internal and external influences, such as pressure and shear. 100% PES (Polyester).









EASY CARE

Durable, breathable, elastic, wipeable and hygienic. PES (Polyester) + PU.

Does it fit my Netti?

If you do not know, which Netti you have, please check the serial number.

You will find the serial no. on a label at the lower cross bar. It writes xxx-xxxxxx.

The first 3 digits of the serial number will help you determine which Netti wheelchair you have.
Please check our FAQ for a list of all serialnumbers and Netti model.

Videos

Head support depth adjustment
3D-free in space adjustment
