Grandis leg supports

When stability and safety are important to you.

The advanced design of the new Netti Grandis combines robust solidity with elegant design. Netti Grandis stands for durability. Choose between:

Foot plates
Foot board
Foot box

For lower leg length 360-640 mm.

Items to order
Why choose this?
Does it fit my Netti?
Videos
Downloads

Items to Order

Complete leg support
Pos. Description Seat Width Unit Item no. Price
1
Leg support complete right 350 mm Piece 88601 781.00
2
Leg support complete left 350 mm Piece 88609 781.00
1
Leg support complete right 380 mm Piece 88602 781.00
2
Leg support complete left 380 mm Piece 88610 781.00
1
Leg support complete right 400 mm Piece 88603 781.00
2
Leg support complete left 400 mm Piece 88611 781.00
1
Leg support complete right 430 mm Piece 88604 781.00
2
Leg support complete left 430 mm Piece 88612 781.00
1
Leg support complete right 450 mm Piece 88605 781.00
2
Leg support complete left 450 mm Piece 88613 781.00
1
Leg support complete right 500 mm Piece 88606 781.00
2
Leg support complete left 500 mm Piece 88614 781.00
1
Leg support complete right 550 mm Piece 88607 781.00
2
Leg support complete left 550 mm Piece 88615 781.00
1
Leg support complete right 600 mm Piece 88608 781.00
2
Leg support complete left 600 mm Piece 88616 781.00
Upper parts & spare parts for upper parts
Pos. Description Unit Item no. Price
1
Leg support upper part right Piece 88671 415.00
2
Leg support upper part left Piece 88672 415.00
3
Lifting handle right Piece 87808 20.00
4
Lifting handle left Piece 87809 20.00
5
Knee pivot cover Piece 88594 23.00
6
Knee upholstery right Piece 85859 24.00
7
Knee upholstery left Piece 85860 24.00
8
Angle limiter Piece 85977 20.00
Calf supports & spare parts for calf supports
Pos. Description Seat Width Height Unit Item no. Price
1
Calf support 350 mm 150 mm Piece 85680 74.00
1
Calf support 380 - 400 mm 150 mm Piece 85681 74.00
2
Calf support 430 - 450 mm 225 mm Piece 88634 88.00
2
Calf support 500 mm 225 mm Piece 88635 88.00
2
Calf support 550 mm 225 mm Piece 88636 88.00
2
Calf support 600 mm 225 mm Piece 88637 88.00
2
Calf support 650 mm 225 mm Piece 89489 193.00
2
Calf support 700 mm 225 mm Piece 89490 193.00
2
Calf support 750 mm 225 mm Piece 89491 193.00
3
Calf support adapter - - Piece 90014 35.00
Foot plates & spare parts for foot plates
Pos. Description Seat Width Unit Item no. Price
1
Foot plate with lock right 350 mm Piece 85912 267.00
2
Foot plate with lock left 350 mm Piece 85920 267.00
1
Foot plate with lock right 380 mm Piece 85913 267.00
2
Foot plate with lock left 380 mm Piece 85921 267.00
1
Foot plate with lock right 400 mm Piece 85914 267.00
2
Foot plate with lock left 400 mm Piece 85922 267.00
1
Foot plate with lock right 430 mm Piece 85915 267.00
2
Foot plate with lock left 430 mm Piece 85923 267.00
1
Foot plate with lock right 450 mm Piece 85916 267.00
2
Foot plate with lock left 450 mm Piece 85924 267.00
1
Foot plate with lock right 500 mm Piece 85917 267.00
2
Foot plate with lock left 500 mm Piece 85925 267.00
1
Foot plate with lock right 550 mm Piece 85918 267.00
2
Foot plate with lock left 550 mm Piece 85926 267.00
1
Foot plate with lock right 600 mm Piece 85919 267.00
2
Foot plate with lock left 600 mm Piece 85927 267.00
3
Foot plate lock - Piece 85745 20.00
4
Lock pin with washer - Piece 85751 9.00
5
Netti Grandis strap attachment kit - Piece 88658 76.00
Foot board
Pos. Description Seat Width Unit Item no. Price
Foot board complete 350 mm Piece 89272 352.00
Foot board complete 380 mm Piece 89273 352.00
Foot board complete 400 mm Piece 89274 352.00
Foot board complete 430 mm Piece 89275 352.00
Foot board complete 450 mm Piece 89276 352.00
Foot board complete 500 mm Piece 89277 352.00
Foot board complete 550 mm Piece 89278 352.00
Foot board complete 600 mm Piece 89279 352.00
Foot board complete 650 mm Piece 89280 398.00
Foot board complete 700 mm Piece 89281 398.00
Foot board complete 750 mm Piece 89282 398.00

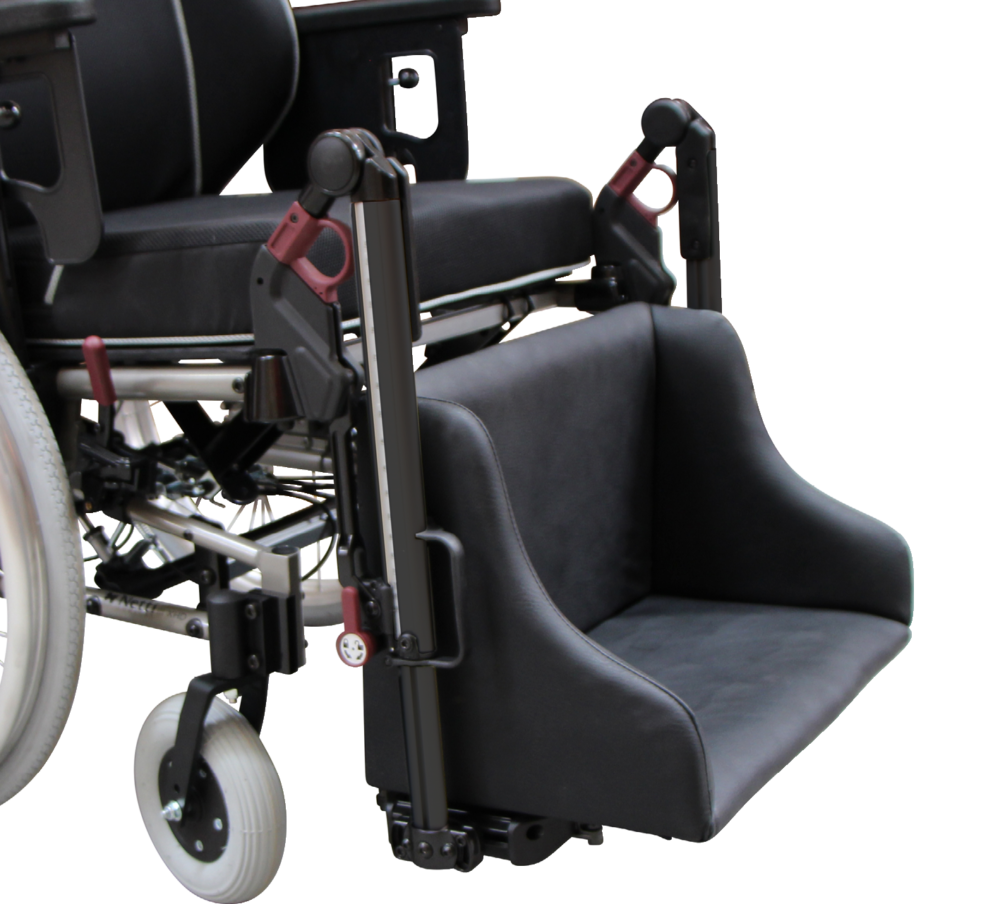

Foot box
Pos. Description Fabric Seat Width Unit Item no. Price
1
Foot box complete with leg support Skai 350 mm Piece 89378 1,425.00
1
Foot box complete with leg support Skai 380 mm Piece 89379 1,425.00
1
Foot box complete with leg support Skai 400 mm Piece 89380 1,425.00
1
Foot box complete with leg support Skai 430 mm Piece 89381 1,425.00
1
Foot box complete with leg support Skai 450 mm Piece 89382 1,425.00
1
Foot box complete with leg support Skai 500 mm Piece 89383 1,425.00
1
Foot box complete with leg support Skai 550 mm Piece 89384 1,425.00
1
Foot box complete with leg support Skai 600 mm Piece 89385 1,425.00
2
Foot box Skai 350 mm Piece 90411 604.00
2
Foot box Skai 380 mm Piece 90412 604.00
2
Foot box Skai 400 mm Piece 90413 604.00
2
Foot box Skai 430 mm Piece 90414 604.00
2
Foot box Skai 450 mm Piece 90415 604.00
2
Foot box Skai 500 mm Piece 90416 604.00
2
Foot box Skai 550 mm Piece 90417 604.00
2
Foot box Skai 600 mm Piece 90418 604.00
Upholstery for upper part
Pos. Description Fabric Unit Item no. Price
1
Knee pad with bracket right 3D Piece 89120 55.00
2
Knee pad with bracket left 3D Piece 89121 55.00
1
Knee pad with bracket right Easy Care Piece 89849 55.00
2
Knee pad with bracket left Easy Care Piece 89850 55.00
Upholstery for calf support
Pos. Description Fabric Seat Width Height Unit Item no. Price
1
Calf support bracket upholstery Skai - - Piece 21745 30.00
2
Calf support cover 3D 350 mm 150 mm Piece 85074 80.00
2
Calf support cover 3D 380 - 400 mm 150 mm Piece 85075 80.00
3
Calf support cover 3D 430 - 450 mm 225 mm Piece 88650 88.00
3
Calf support cover 3D 500 mm 225 mm Piece 88651 88.00
3
Calf support cover 3D 550 mm 225 mm Piece 88652 88.00
3
Calf support cover 3D 600 mm 225 mm Piece 88653 88.00
3
Calf support cover 3D 650 mm 225 mm Piece 89222 80.00
3
Calf support cover 3D 700 mm 225 mm Piece 89223 80.00
3
Calf support cover 3D 750 mm 225 mm Piece 89224 80.00
2
Calf support cover Easy Care 350 mm 150 mm Piece 88624 80.00
2
Calf support cover Easy Care 380 - 400 mm 150 mm Piece 88625 80.00
3
Calf support cover EC 430 - 450 mm 225 mm Piece 88654 88.00
3
Calf support cover EC 500 mm 225 mm Piece 88655 88.00
3
Calf support cover EC 550 mm 225 mm Piece 88656 88.00
3
Calf support cover EC 600 mm 225 mm Piece 88657 88.00
3
Calf support cover Easy Care 650 mm 225 mm Piece 89225 80.00
3
Calf support cover Easy Care 700 mm 225 mm Piece 89226 80.00
3
Calf support cover Easy Care 750 mm 225 mm Piece 89227 80.00
Extension piece
Pos. Description Unit Item no. Price
1
Extension part right Piece 85974 140.00
2
Extension part left Piece 85975 140.00
3
Extension part abduction right 25 mm Piece 89839 162.00
4
Extension part abduction left 25 mm Piece 89840 162.00

Why choose this?

Unique ergonomics and user-friendliness
Easy to use

The red control points and the clearly legible adjustment scales make the new Grandis intuitive to use. The conical extension piece ensures an easy mounting of the foot supports.

User-friendly

Big robust handles and levers and the conical and self-locking upper parts of the new Grandis save time and make them more user-friendly. "One-hand" operation possible for angle adjustment, foot plate locks and removal.

Functionality

The new functionalities in the new Grandis ensure limitless adjustment options with simultaneous simplicity. On a daily basis only the 3 red control points need to be used.

Time-saving fittings

The simple handling and the scales speed up the user-specific adjustment.



We adapt our products to human beings and not the other way round.
Readable setting of the knee angle

The scale displays the respective joint position. A 90° knee angle helps to ensure the optimum sitting position.

Bending of knee joints can also be restricted in cases where this is mandatory due to clinical symptoms, for instance after operations or fixed contractures.

The joint angle can be set on the associated scale and then read off.

Long adjustment pieces for different lower leg lengths



280 mm flexibility for lower leg lengths of 360-640 mm.

Angle and depth-adjustable foot plates

The angle of the foot plates can be adjusted up to 35° on both sides and the depth setting of the foot plates can be adjusted up to 6 cm. This means that asymmetric foot positions can be safely and securely provided for.

The flat design of the foot plate ensures the biggest
possible surface. Self-locking foot plate lock.

The foot plates can still be locked despite different depth settings (e.g. with different leg lengths or pelvic distortions).

Height and depth adjustable calf supports – larger than standard

The length of the calf plates provides good guidance for the lower legs and helps ensure a good foot position (150 or 225 mm dependent of seat width)

The calf plates can be adjusted 35 mm in depth and 190 mm in height.









Key Features

Easy Handling
0° to 90°
Readable scales
Plenty of foot space
And self-locking foot plates

Does it fit my Netti?

If you do not know, which Netti you have, please check the serial number.

You will find the serial no. on a label at the lower cross bar. It writes xxx-xxxxxx.

The first 3 digits of the serial number will help you determine which Netti wheelchair you have.
Please check our FAQ for a list of all serialnumbers and Netti model.

Videos

Mounting
Fine adjustments of the extension piece
Disassembling
Angle adjustment
Calf support height adjustement
Calf support depth adjustment
Foot plate height adjustment
Foot plate depth adjustment
Foot plate lock
Foot plate angle adjustment
